THREE-WAY UNDER BODY TIPPING CYLINDER UMB

Kaysul's telescopic front-end cylinders are designed for dump trucks and tipping semitrailers.Our dump cylinder has gained a good reputation over the years for its reliability and cost-effectiveness. Kaysul designs and manufactures a complete range of telescopic tipping cylinders, both for front-end and underbody applications. The Kaysul cylinder is lightweight, uses less oil and therefore tips and lowers faster and is strong, stable.

Inquiry

E-mail：carl@kaysul.com

WhatsApp：8618012313115

Detailed Description

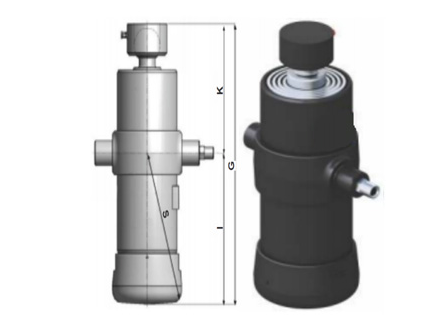

K & G dimensions are incl. 20 mm pull

out with tolerances of -5/+30mm.

UMB 129

Product model	Weight (kg.)	G (mm)	I (mm)	K (mm)	S (mm)
UMB 129-3-0700-K318-45-½“	46	468	150	318	168
UMB 129-3-1000-K212-45-½"	42	568	356	212	229
UMB 129-3-1360-K212-45-½"	64	702	490	212	496
UMB 129-4-1020-K205-45-½“	49	481	276	205	286
UMB 129-4-1500-K205-45-½“	60	601	396	205	325
UMB 129-4-1180-K205-45-½"	52	521	316	205	364
UMB 129-4-1340-K205-45-½"	56	561	356	205	403
UMB 129-4-1820-K205-45-½"	68	695	490	205	496
UMB 129-5-1480-K192-45-½“	59	508	316	192	229
UMB 129-5-1880-K192-45-½“	67	588	396	192	286
UMB 129-5-0980-K192-45-½"	46	408	216	192	325
UMB 129-5-1280-K192-45-½"	53	468	276	192	403
UMB 129-5-1980-K192-45-½"	70	622	430	192	436
UMB 129-5-2280-K192-45-½"	76	682	490	192	496
UMB 129-5-2480-K192-45-½"	81	722	530	192	535

UMB 149

Product model	Weight (kg.)	G (mm)	I (mm)	K (mm)	S (mm)
UMB 149-3-1360-K265-50-¾"	79	706	441	265	449
UMB 149-3-1630-K265-50-¾"	88	796	531	265	538
UMB 149-3-2230-K265-50-¾"	107	996	731	265	736
UMB 149-4-0700-K265-50-¾"	56	432	167	265	187
UMB 149-4-0780-K265-50-¾"	56	432	167	265	187
UMB 149-4-1020-K265-50-¾"	62	492	227	265	242
UMB 149-4-1500-K265-50-¾“	76	612	347	265	357
UMB 149-4-1820-K265-50-¾“	86	706	441	265	449
UMB 149-4-2180-K265-50-¾“	96	796	531	265	538
UMB 149-4-2540-K265-50-¾“	106	886	621	265	627
UMB 149-4-2980-K265-50-¾“	118	996	731	265	736
UMB 149-5-0980-K258-50-¾“	57	425	167	258	187
UMB 149-5-1280-K258-50-¾“	64	485	227	258	242
UMB 149-5-1480-K258-50-¾“	69	525	267	258	280
UMB 149-5-1880-K258-50-¾“	79	605	347	258	357
UMB 149-5-2480-K258-50-¾"	95	739	481	258	488
UMB 149-6-1540-K245-50-¾"	68	472	227	245	242
UMB 149-6-1780-K245-50-¾“	75	512	267	245	280
UMB 149-6-2380-K245-50-¾"	89	626	381	245	390

UMB 169

Product model	Weight (kg.)	G (mm)	I (mm)	K (mm)	S (mm)
UMB 169-4-1020-K265-50-¾"	74	492	227	265	246
UMB 169-4-1820-K265-50-¾"	102	706	441	265	451
UMB 169-4-1980-K265-50-¾"	107	746	481	265	490
UMB 169-4-2180-K265-50-¾"	114	796	531	265	540
UMB 169-4-2540-K265-50-¾"	126	886	621	265	628
UMB 169-4-2980-K265-50-¾"	140	996	731	265	737
UMB 169-5-1280-K265-50-¾"	78	492	227	265	246
UMB 169-5-1480-K265-50-¾“	84	532	267	265	284
UMB 169-5-1880-K265-50-¾“	96	612	347	265	360
UMB 169-5-1980-K265-50-¾“	100	646	381	265	393
UMB 169-5-2280-K265-50-¾“	109	706	441	265	451
UMB 169-5-2480-K265-50-¾“	115	746	481	265	490
UMB 169-5-2730-K265-50-¾“	122	796	531	265	540
UMB 169-6-1540-K258-50-¾“	79	485	227	258	246
UMB 169-6-1780-K258-50-¾“	86	525	267	258	284
UMB 169-6-2020-K258-50-¾"	92	565	307	258	322
UMB 169-6-2260-K258-50-¾“	99	605	347	258	360
UMB 169-6-2380-K245-50-¾“	104	626	381	245	393
UMB 169-6-2740-K258-50-¾“	113	699	441	258	451
UMB 169-6-2980-K258-50-¾“	119	739	481	258	490
UMB 169-6-3280-K258-50-¾“	127	789	531	258	540
UMB 169-6-3820-K258-50-¾“	141	879	621	258	628
UMB 169-7-1800-K245-50-¾“	85	472	227	245	246
UMB 169-7-2080-K245-50-¾"	90	512	267	245	284
UMB 169-7-2360-K245-50-¾“	99	552	307	245	322
UMB 169-7-2780-K245-50-¾"	110	626	381	245	393

UMB 191

Product model	Weight (kg.)	G (mm)	I (mm)	K (mm)	S (mm)
UMB 191-4-1020-K270-60-¾"	91	495	225	270	249
UMB 191-5-1180-K270-60-¾"	92	475	205	270	231
UMB 191-5-2280-K270-60-¾"	133	709	439	270	452
UMB 191-5-2480-K270-60-¾"	140	749	479	270	491
UMB 191-5-2730-K270-60-¾"	149	799	529	270	540
UMB 191-5-3180-K270-60-¾"	165	889	619	270	628
UMB 191-6-1780-K270-60-¾“	107	535	265	270	286
UMB 191-6-2260-K270-60-¾"	122	615	345	270	361
UMB 191-6-2380-K270-60-¾"	129	649	379	270	394
UMB 191-6-2740-K270-60-¾"	140	709	439	270	452
UMB 191-6-2980-K270-60-¾"	148	749	479	270	491
UMB 191-7-1660-K263-60-¾"	97	468	205	263	231
UMB 191-7-1800-K278-60-¾“	102	503	225	278	249
UMB 191-7-2080-K278-60-¾“	110	543	265	278	286
UMB 191-7-2360-K278-60-¾“	118	583	305	278	323
UMB 191-8-2060-K278-60-¾“	98	503	225	278	249
UMB 191-8-2380-K278-60-¾“	106	543	265	278	286
UMB 191-8-3980-K278-60-¾“	149	757	479	278	491

Note: Other models can be produced according to your requirements

Previous page： UNDER BODY TIPPING CYLINDER ULE
Next page： UNDER BODY TIPPING CYLINDER UME

ONLINE MESSAGE

Online Customer Service

Online Customer Service 03:14

Hello, it's our pleasure to serve you!
Online Customer Service 03:14

Hello, could you please leave your mobile phone number or email?

This website uses cookies to ensure you get the best experience on our website.

Accept Reject

Products

THREE-WAY UNDER BODY TIPPING CYLINDER UMB

THREE-WAY UNDER BODY TIPPING CYLINDER UMB

ONLINE MESSAGE

RELATED PRODUCTS

FRONT-END CYLINDER WITH EYE (FE)

Agricultural hydraulic cylinder

Single Stage Hydraulic Cylinder

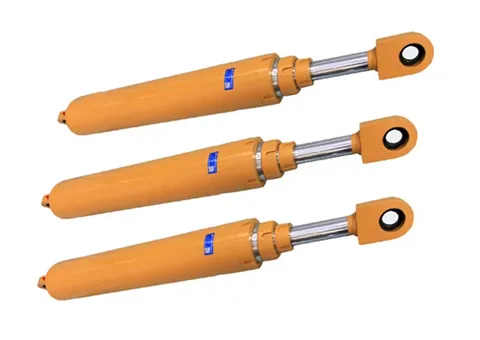

3 Stage Hydraulic Cylinder
